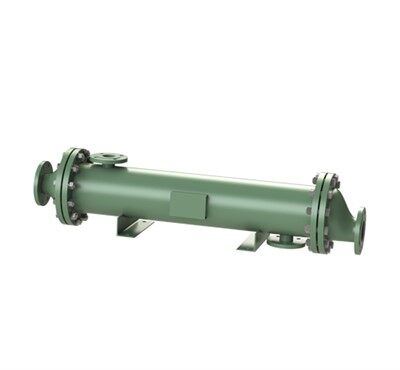

Water Cooled Aftercooler

The after cooler operates on the principle of heat exchange. Hot, compressed air flows into the after cooler, where it is cooled by a secondary medium, typically water or ambient air. In water-cooled after coolers, the hot air passes through a series of tubes surrounded by cooling water, allowing heat to dissipate efficiently. In air-cooled models, fans blow ambient air over finned surfaces that contain the hot compressed air, facilitating heat transfer. This cooling process not only lowers the air temperature but also reduces the humidity level in the air, leading to drier, higher-quality compressed air.

Compressor air aftercoolers are used across a wide range of industries, including:

Manufacturing: In manufacturing plants,air aftercoolers are essential for maintaining the quality of compressed air used in tools, machinery, and product processes.

Automotive Industry: The automotive sector uses air aftercoolers to ensure clean, dry air for pneumatic tools, painting, and other precision applications.

Food and Beverage: In food and beverage production, aftercoolers help maintain air quality standards by removing moisture, which is crucial for ensuring that compressed air does not contaminate products.

Pharmaceuticals: The pharmaceutical industry relies on aftercoolers to provide high-purity air for manufacturing processes, where any contamination could compromise product integrity.

Electronics: In electronics manufacturing, aftercoolers are critical for preventing moisture-related issues in sensitive production environments.

Aerospace: The aerospace industry uses aftercoolers to ensure the reliability of compressed air systems in both manufacturing and testing environments.

1: What is the main purpose of an after cooler for air compressors?
The main purpose of an after cooler is to lower the temperature of compressed air, thereby reducing moisture content and improving air quality and system efficiency.

2: How does an after cooler improve air compressor performance?
By cooling the compressed air and reducing moisture, an after cooler helps prevent condensation in the air lines, which can cause corrosion and inefficiencies in pneumatic tools and equipment.

3: What types of cooling mediums are used in after coolers?
After coolers commonly use water or ambient air as cooling mediums. Water-cooled models are more effective for significant temperature reductions, while air-cooled models are suitable for environments with limited water access.

4: What maintenance practices should be followed for after coolers?
Regular maintenance should include checking the cooling medium levels, cleaning the heat exchange surfaces, inspecting for leaks, and ensuring that airflow is not obstructed for air-cooled models.

5: How do I determine the appropriate size of an after cooler?
The appropriate size of an after cooler is determined by factors such as the compressor's discharge flow rate, desired outlet temperature, cooling medium used, and the installation environment.

6: Can using an after cooler reduce energy costs?
Yes, by effectively cooling compressed air, after coolers can reduce the load on downstream dryers and other equipment, resulting in lower energy consumption and operational costs.
