Features
High Pressure Capability: They are engineered to handle operating pressures that can exceed 4.5 MPa (45 barg). This makes them suitable for applications where air must be compressed to extremely high levels, far beyond the capabilities of conventional air dryers.
Robust Construction: These dryers are built with reinforced materials and components to withstand the stress and wear associated with high-pressure operation. This includes heavy-duty heat exchangers, high-strength refrigerant circuits, and durable moisture separators.
Efficient Moisture Removal: The dryers utilize advanced refrigeration technology to cool compressed air to low temperatures, causing moisture to condense and be separated from the air stream. They often maintain a pressure dew point (PDP) between 3-10°C, ensuring that the air is sufficiently dry for sensitive applications.
Versatile Cooling Options: Depending on the model, they can be either air-cooled or water-cooled. For larger capacity dryers, typically starting from 150 m³/min, water-cooled versions are available to manage the substantial heat loads more effectively.
Multiple Power Supply Options: These dryers accommodate different power supply configurations, including 220V/1Ph/50Hz/60Hz for smaller units and 380V/3Ph/50Hz/60Hz for larger units. This flexibility makes them adaptable to various industrial settings.
Advanced Control Systems: Equipped with sophisticated control systems, these dryers monitor and regulate the drying process to ensure optimal performance. This includes automatic drainage of collected moisture and protection mechanisms against overpressure or overheating.
| Parameter | Specification |
| Capacity | 1.2~80 m³/min |
| Max. Working Pressure | ≤4.5 MPa (45 barg) |
| Max. Inlet Temperature | 60°C |
| Max. Ambient Temperature | 50°C |
| Min. Ambient Temperature | 5°C |
| Max. Cooling Water Temperature | 35°C |
| Cooling Type | Air-cooled; Water-cooled version from 150 m³/min and above |
| Power Supply | 220V/1Ph/50Hz/60Hz (RSLF-12-HP ~ RSLF-150-HP) |
| 380V/3Ph/50Hz/60Hz (RSLF-200-HP ~ RSLF-800-HP) | |
| Refrigerant | R134a / R407C |
| Rated Condition | |
| - Rated Working Pressure | 4.0 MPa |
| - Inlet Temperature | 38°C |
| - Ambient Temperature | 38°C |
| - Cooling Water Temperature | 32°C |
| - Pressure Dew Point (PDP) | 3-10°C |
| Other Notes |
For pressure < 1.5 MPa or > 4.0 MPa, please contact us.
|
Technical Specification

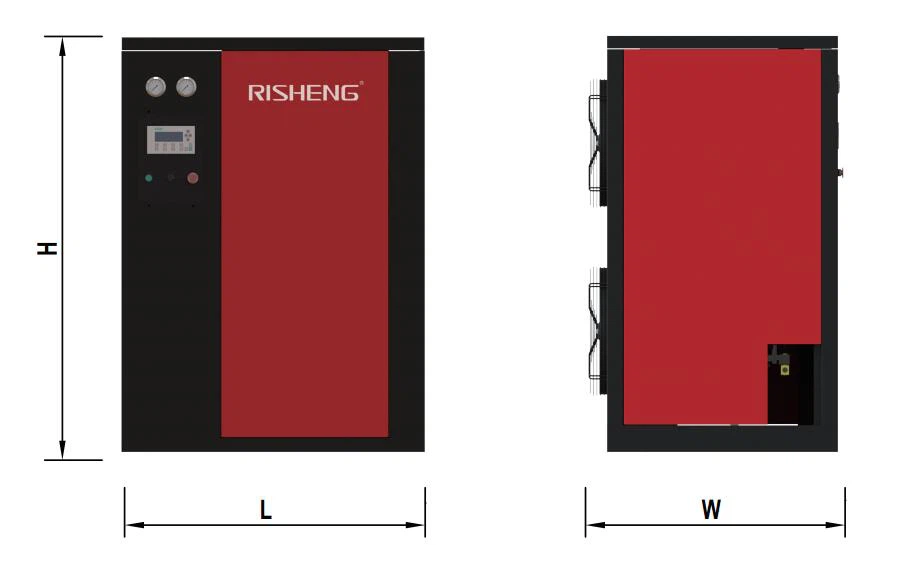

| Model | Air Connection | Capacity m³/min | Power Supply | Absorbed | Dimension mm | Weight | |||
| V/Ph/Hz | Power (kW) | (kg) | |||||||
| m³/min | CFM | L | W | H | |||||
| RSLF-12-HP | Rc1/2" | 1.2 | 42 | 230/1/50 | 0.26 | 600 | 310 | 500 | 35 |
| RSLF-15-HP | Rc1/2" | 1.5 | 53 | 230/1/50 | 0.28 | 600 | 310 | 500 | 35 |
| RSLF-18-HP | Rc1/2" | 1.8 | 64 | 230/1/50 | 0.3 | 600 | 310 | 500 | 35 |
| RSLF-24-HP | Rc3/4" | 2.4 | 85 | 230/1/50 | 0.46 | 750 | 360 | 550 | 50 |
| RSLF-30-HP | Rc3/4" | 3 | 106 | 230/1/50 | 0.5 | 750 | 360 | 550 | 50 |
| RSLF-36-HP | Rc3/4" | 3.6 | 127 | 230/1/50 | 0.53 | 750 | 360 | 550 | 55 |
| RSLF-40-HP | Rc3/4" | 4 | 141 | 230/1/50 | 0.55 | 750 | 360 | 550 | 55 |
| RSLF-60-HP | Rc1-1/4" | 6 | 212 | 230/1/50 | 0.8 | 750 | 550 | 880 | 80 |
| RSLF-80-HP | Rc1-1/4" | 8 | 282 | 230/1/50 | 0.85 | 750 | 550 | 880 | 80 |
| RSLF-90-HP | Rc1-1/4" | 9 | 318 | 230/1/50 | 0.9 | 750 | 550 | 880 | 80 |
| RSLF-100-HP | Rc1-1/4" | 10 | 353 | 230/1/50 | 1.1 | 750 | 550 | 880 | 80 |
| RSLF-120-HP | Rc1-1/4" | 12 | 424 | 230/1/50 | 1.22 | 750 | 550 | 880 | 80 |
| RSLF-150-HP | Rc1-1/4" | 15 | 530 | 230/1/50 | 2.1 | 1100 | 860 | 1200 | 150 |
| RSLF-200-HP | Rc1-1/4" | 20 | 706 | 230/1/50 | 2.3 | 1100 | 860 | 1200 | 150 |
| RSLF-250-HP | Rc2-1/2" | 25 | 883 | 400/3/50 | 2.8 | 1100 | 900 | 1550 | 270 |
| RSLF-300-HP | Rc2-1/2" | 30 | 1059 | 400/3/50 | 2.9 | 1100 | 900 | 1550 | 270 |
| RSLF-350-HP | Rc2-1/2" | 35 | 1236 | 400/3/50 | 3.1 | 1100 | 900 | 1550 | 300 |
| RSLF-400-HP | Rc2-1/2" | 40 | 1412 | 400/3/50 | 4.2 | 1100 | 900 | 1550 | 350 |
| RSLF-500-HP | Rc2-1/2" | 50 | 1766 | 400/3/50 | 4.56 | 1100 | 900 | 1550 | 470 |
| RSLF-600-HP | DN80 | 60 | 2119 | 400/3/50 | 5.6 | 1450 | 1130 | 1650 | 550 |
| RSLF-700-HP | DN80 | 70 | 2472 | 400/3/50 | 5.8 | 1450 | 1130 | 1650 | 570 |
| RSLF-800-HP | DN80 | 80 | 2825 | 400/3/50 | 5.94 | 1450 | 1130 | 1650 | 600 |
|
Rated Conditions |
|
|
Working pressure: 4.0Mpag / 580psig |
|
|
Inlet temp: 38℃ / 100 ℉ |
|
|
Ambient temp: 38 ℃ / 100 ℉ |
|
|
Working Range |
|
|
Max. working pressure: 4.5Mpag / 653psig |
|
|
Max. inlet temperature: 60℃ / 140 ℉ |
|
|
Max. ambient temperature: 50℃ / 122 ℉ |
|
|
Min. ambient temperature: 5℃ / 41 ℉ |
|
|
Avaliable |
|
|
Different power supply |
|
|
Water cooling version from model 150 and above |
Correction Factors
Actual Capacity (m³/min) = Nominal Capacity × KA × KB × KC
| Working Pressure (KA) | Mpag | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 |
| psig | 290 | 363 | 435 | 508 | 580 | 653 | |
| CFP | 0.93 | 0.96 | 0.97 | 0.99 | 1 | 1.01 |
| Inlet Temperature (KB) | ℃ | 30 | 32 | 38 | 43 | 49 | 54 | 60 |
| ℉ | 86 | 90 | 100 | 110 | 120 | 130 | 140 | |
| CFT | 1.27 | 1.18 | 1 | 0.87 | 0.76 | 0.68 | 0.61 |
| Ambient Temperature (KC) | ℃ | 16 | 21 | 27 | 32 | 38 | 43 | 49 | 50 |
| ℉ | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 122 | |
| CFT | 1.15 | 1.12 | 1.08 | 1.04 | 1 | 0.95 | 0.9 | 0.89 |
Applications
Oil and Gas Industry: In the extraction and processing of oil and gas, high-pressure air is often required. Moisture in the air can lead to corrosion of pipelines and equipment, making them essential.
Chemical and Petrochemical Processing: These industries use compressed air at high pressures for various processes, where moisture can cause contamination or react with chemicals, leading to potential safety hazards.
Pharmaceuticals: In pharmaceutical manufacturing, dry air is crucial for the production of sensitive products.They ensure that the air used in these processes is free from moisture, preventing product spoilage.
Manufacturing and Metalworking: High-pressure air is used for tasks like molding, forging, and cutting. Moisture can weaken materials or cause defects, so these dryers are crucial for maintaining quality.
Power Generation: In power plants, compressed air is used for instrumentation and control systems. They ensure the reliability and accuracy of these systems by providing dry air.
FAQ:
1. How do they enhance the reliability of compressed air systems?
They enhance reliability by effectively removing moisture from high-pressure air, preventing issues such as corrosion, freezing, and other moisture-related problems that could damage equipment or compromise the integrity of industrial processes.
2. What makes modern they energy-efficient?
Modern High Pressure Air Dryers are energy-efficient due to their smart control systems, which optimize power consumption based on demand. Despite their high capacity, these dryers maintain performance while minimizing energy usage, contributing to overall operational efficiency.
3. In which industries are they particularly versatile, and why?
They are particularly versatile in industries like oil and gas, chemical processing, pharmaceuticals, and high-tech manufacturing. In these sectors, the need for dry, high-pressure air is critical to ensure the quality, safety, and efficiency of various processes, making these dryers indispensable.
4. How does the robust design of them contribute to their longevity?
The robust design and use of high-quality components in them contribute to a long service life, even under demanding conditions. This durability reduces the frequency of downtime and maintenance, leading to lower operational costs over time.
5. What safety features are integrated into High Pressure Air Dryers to ensure safe operation?
Theys are equipped with safety features such as overpressure protection, temperature controls, and reliable drainage systems. These features are designed to prevent accidents, maintain smooth operation, and ensure the overall safety of the compressed air system.
